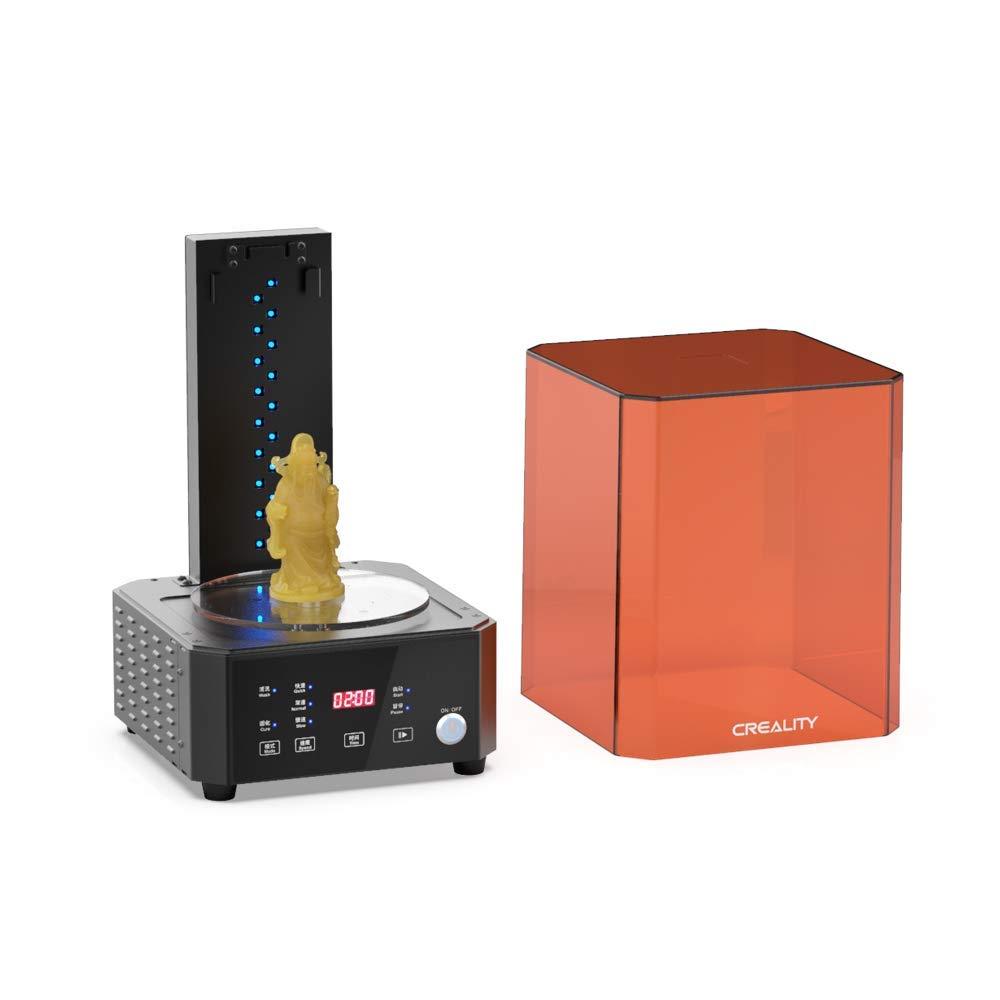

Creality UW-01 Washing and Curing Station Machine

Features:

Dual-band UV light source

Magnetic 360° rotatable platform

Large-size washing container

Adjustable three-gear speed

2-90min optional

HD touch button

Adjustable three-gear speed and 2-90min optional

With a three-gear speed mode, it includes washing and curing; The washing and curing time has 2-90min optional. Delicate models come from the curing and washing.

Strong wash mode:

1, Flexible wash method: The model can be washed separately in the washing basket or together with bottom plates.

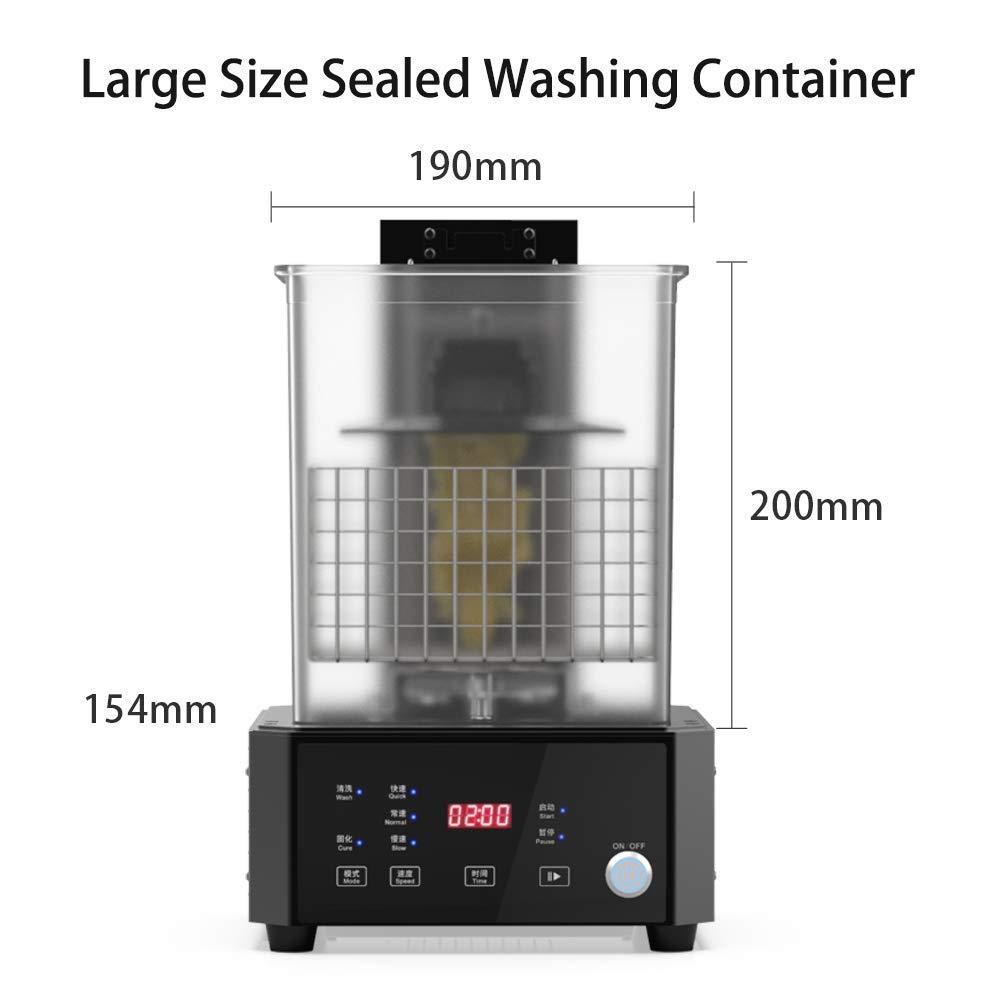

2, Large size sealed washing container: the UW-01 Washing and Curing Machine supports larger size models for cleaning; With a sealed container and lid, it avoids cleaning solution volatilization and also stores the cleaning solution for the repeated use.

3, Self-adjustable bracket: The water level to wash the model depends on the washing container size and model size.

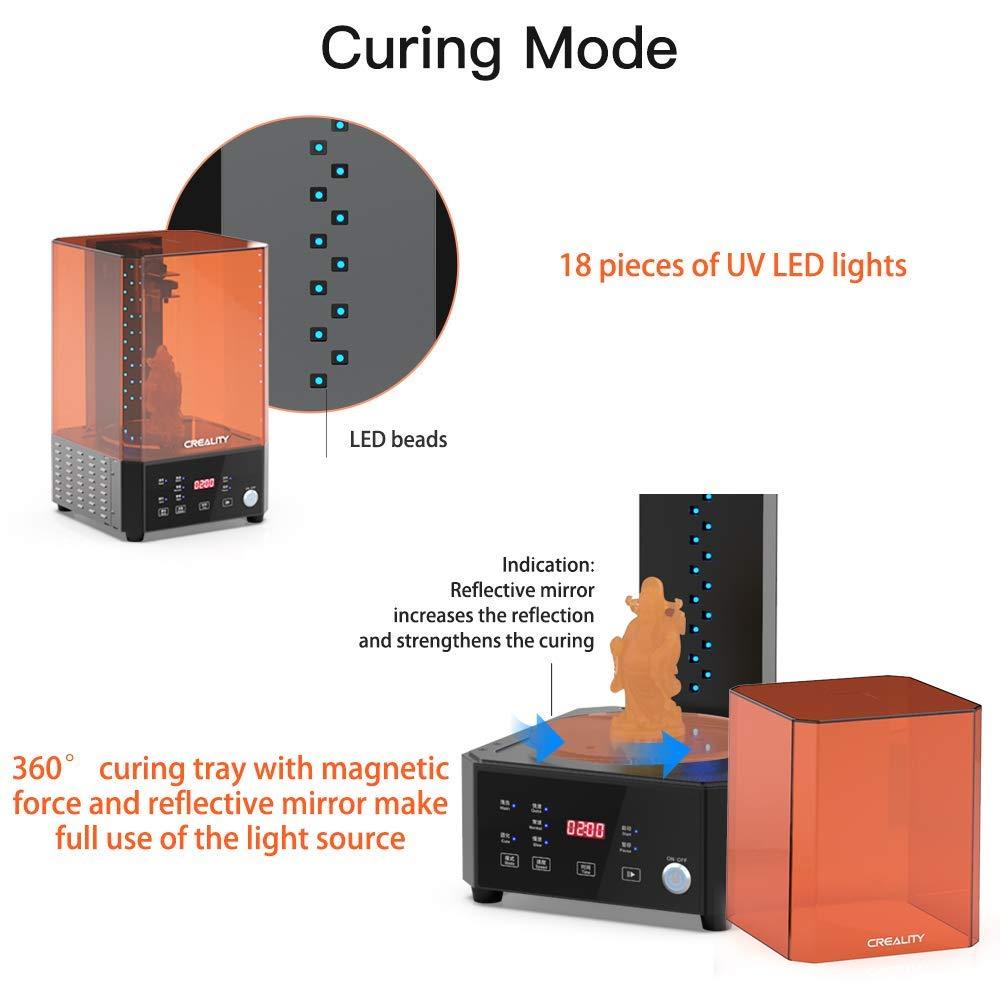

Cure mode:

1, Double-row, and Double band UV lamp beads: With built-in LED beads(18 pieces of UV LED lights), the UW-01 Washing and Curing Machine is compatible with most resin printers; The double row 9-bead design with a higher irradiated area realizes quick curing and even irradiation for the larger model.

2, 360° specular reflections curing rotating platform: 360° curing tray with magnetic force and reflective mirror make full use of the light source, which cures the model all the angles.

3, Remove the machine core, stop working automatically: Once the machine cover is removed during the curing process, the UW-01 Washing and Curing Machine will immediately suspend the curing, which avoids light source glare and reduces light pollution.

Product Parameters

Model: UW-01

Machine: Washing and Curing Machine

Control method: Touch button, LED indicator

Rated power: 96W

Input voltage: 24V

Curing and washing time: 2-90min

Washing size: 170(L)x 120(W)x 160(H)mm

Air-drying and curing size: 225x225x370mm

Package size: 298x297x505mm

Machine weight: 6.5KG
